Forged vs Cast vs Flow Formed Wheels: What’s the Difference?
When choosing aftermarket wheels, appearance is often the first thing you notice. But how a wheel is manufactured also matters. Its construction influences material properties, weight-saving potential, and production cost.

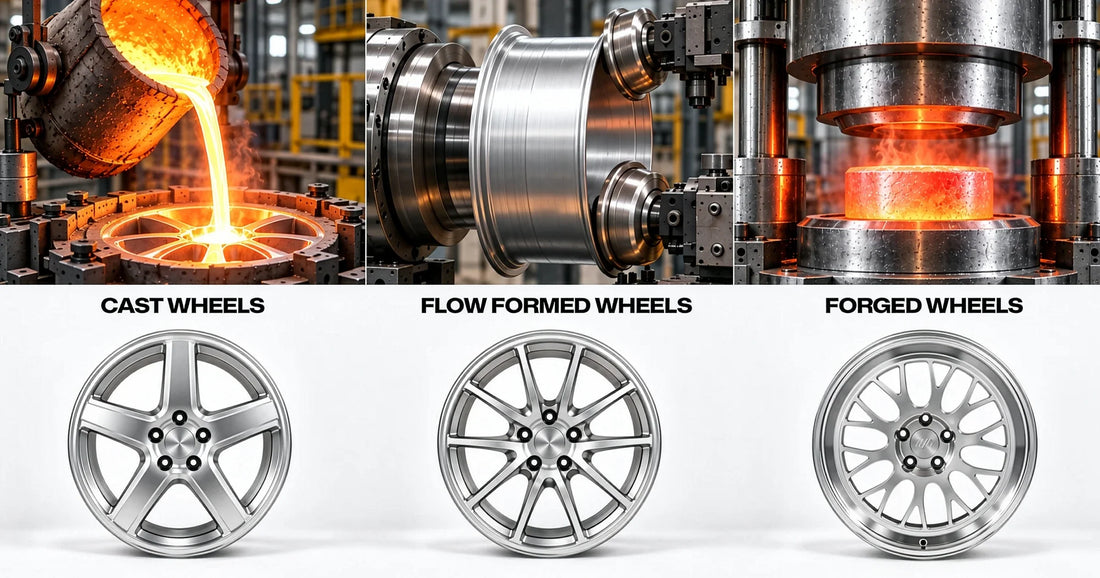

The three main categories you’ll encounter are cast, flow formed, and forged wheels. Cast wheels generally offer accessible pricing, flow formed wheels balance cost with weight optimization, and forged wheels provide greater flexibility for structural optimization.
Understanding these differences helps you choose wheels that suit your vehicle, budget, and driving needs.
Forged vs Cast vs Flow Formed Wheels at a Glance
The comparison below describes general tendencies among aluminum alloy wheels. Actual weight and performance depend on the specific design, dimensions, load rating, and manufacturing quality.
| Feature | Cast Wheels | Flow Formed Wheels | Forged Wheels |
|---|---|---|---|
| Manufacturing | Molten aluminum alloy solidifies in a mold | A cast blank typically receives additional barrel forming | A solid aluminum billet is shaped under pressure |
| Weight-saving potential | Depends heavily on design and structural requirements | Allows weight optimization primarily in the barrel | Offers greater scope for structural weight optimization |
| Typical price position | More affordable | Mid-range | Higher |
| Common buying priorities | Everyday use, appearance, and budget | Balance of cost and weight reduction | Specific design, fitment, and performance goals |
How Cast Wheels Are Made
Cast wheels are produced by introducing molten aluminum alloy into a mold. Once the metal solidifies, the wheel undergoes the required machining, heat treatment, and surface finishing.
Common methods include gravity casting and low-pressure casting.
Casting is well suited to volume production and supports a wide variety of designs. It is a practical way to manufacture wheels at accessible prices, making cast wheels a popular choice for everyday vehicles and appearance upgrades.
A cast wheel’s quality depends on its engineering, materials, production controls, and testing. Well-designed cast wheels can provide reliable service when correctly matched to their intended application.
How Flow Formed Wheels Are Made
Most flow formed wheels begin as cast blanks. During production, rollers apply pressure to the rotating rim section, stretching and shaping it into the required barrel profile.
This process improves the mechanical properties of the worked material, allowing manufacturers to reduce barrel thickness and weight where the design permits.
The spokes and center typically remain cast. A cast wheel with a flow formed barrel is therefore different from a fully forged wheel.
Flow formed wheels can be an appealing option for drivers seeking weight reduction without moving into the typical price range of forged products. The benefit still depends on the particular wheel and specification.
How Forged Wheels Are Made
Forged wheels begin with a solid aluminum alloy billet that is shaped under substantial pressure, usually at an elevated temperature. The blank then undergoes further processing, including heat treatment and machining.
The material properties achieved through forging give engineers greater freedom to optimize the structure while meeting load and durability requirements.
That flexibility can support lightweight designs, but forging does not determine the final weight on its own. Dimensions, spoke geometry, load capacity, and the intended use remain important.
Forging and flow forming can also work together. Some forged wheels use flow forming to shape the barrel; the distinction is that they start with a forged blank rather than a cast one.
Wheel Weight: Why the Exact Specification Matters
Forged wheels generally offer greater potential for weight reduction when dimensions, load requirements, and design goals are comparable. However, they are not automatically lighter than every cast or flow formed alternative.
A wider wheel may require more material than a narrower one. A wheel developed for a heavier vehicle may also have different structural requirements from one designed for a lightweight car.
For a useful comparison, look at the exact diameter, width, offset, and load rating. Comparing only the manufacturing labels can overlook important differences between products.
Cornerwerks CW-01 Weight
For a practical example, the Cornerwerks CW-01 wheels have an approximate four-wheel set weight of 46–47 kg for the 17- and 18-inch configurations.
| CW-01 Size Range | Approximate Weight per Set of Four | Calculated Average per Wheel |
|---|---|---|
| 17–18 inches | 46–47 kg | 11.5–11.75 kg |
The per-wheel figures above are calculated averages based on the set weight, rather than individual measurements for every available specification.
When considering the CW-01, confirm the weight and fitment of your preferred configuration. If your goal is to reduce weight, compare that configuration with the wheels currently fitted to your vehicle.
Also consider tire weight when changing wheel diameter or width. A lighter wheel does not necessarily result in a lighter complete wheel-and-tire assembly.
Price: Why Forged Wheels Usually Cost More
Cast wheels generally offer the lowest entry price because casting supports efficient production at scale.
Flow formed wheels add a barrel-forming stage to the manufacturing process. They typically cost more than conventional cast wheels while remaining below comparable forged products.
Forged wheels require specialized forming equipment and may involve multiple forming stages and extensive machining. These requirements contribute to higher production costs.
Retail prices also depend on wheel size, finish, design complexity, production volume, and brand positioning. Prices can overlap between categories, so construction alone does not determine value.
A useful comparison considers the complete product: suitable fitment, weight, load capacity, testing information, finish quality, and after-sales support.
Which Wheel Type Fits Your Driving Needs?
Everyday Driving and Appearance Upgrades
Quality cast wheels can be a sensible choice when your main priorities are styling, everyday use, and an accessible purchase price.
Correct fitment and sufficient load capacity should come first. Many daily drivers can meet their requirements with a well-engineered cast wheel.
Balancing Budget and Weight Reduction
Flow formed wheels are worth considering when you want to explore lighter options while keeping your budget under control.
Compare actual product specifications. The amount of weight saved depends on both the replacement wheel and the setup it replaces.
Builds With Specific Design or Performance Goals
Forged wheels are worth evaluating when your build calls for a particular combination of dimensions, design, and structural requirements.
Their manufacturing process gives engineers more flexibility to optimize the wheel. Whether that translates into the right benefit for you depends on the finished product and your priorities.
Track Driving
For track use, review the specific wheel’s intended application, load rating, testing information, and inspection guidance.
Forged construction can support a lightweight performance design, but the manufacturing label alone does not establish suitability for track driving. Choose a product developed and validated for the demands of your application.
Frequently Asked Questions
Are Flow Formed Wheels Fully Forged?
Most are not. They typically use a cast blank with a mechanically formed barrel. Fully forged wheels begin with a forged blank, although their production process may also include barrel forming.
If the terminology is unclear, ask the manufacturer how the wheel is made.
Are Forged Wheels Always Lighter Than Cast Wheels?
No. Forging offers opportunities to reduce weight, but final weight depends on dimensions, design, and structural requirements.
Compare specific products with equivalent specifications rather than assuming every forged wheel will be lighter.
Are Forged Wheels Worth It for Daily Driving?
They can be if their design and specifications match your priorities. However, they are not essential for every daily driver.
The additional cost makes sense when the product delivers benefits you value, whether that means a particular fitment, appearance, or verified weight reduction.
What Should I Check Before Ordering Wheels?
Confirm diameter, width, bolt pattern, offset, center bore, load rating, brake clearance, and tire compatibility.
For weight comparisons, request the figure for the exact specification you intend to order and check that it refers to the wheel itself rather than packaged shipping weight.
Explore the Cornerwerks CW-01
Choosing wheels starts with understanding what your vehicle needs and what you want to achieve. Manufacturing method is part of that decision, alongside fitment, design, weight, and budget.
If you are considering the CW-01 for your next build, review the available options and confirm the specification that suits your vehicle.
Explore the Cornerwerks CW-01 wheels, or contact us with your vehicle details, preferred size, and driving needs to discuss a suitable configuration.
